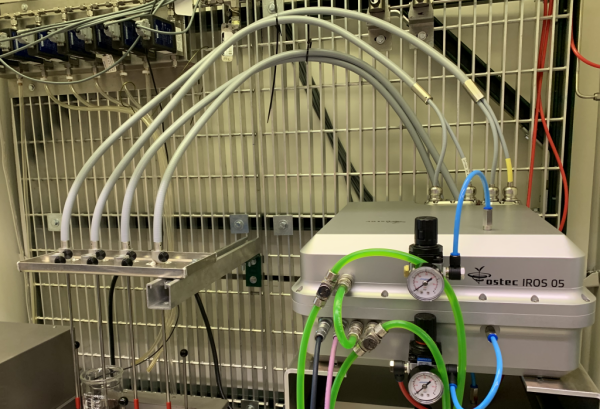

IROS 05i is a special FTIR spectrometer designed for work in harsh conditions. This model allows to solve a wide range of industrial problems, including process control, with the possibility of on-line (in-situ) monitoring of industrial processes (in reactors or pipelines) both for laboratories and industry facilities.
Features
Completely tight metal case
Ports for connecting an external cooler and purging with inert gases to protect and stabilize the optical unit in difficult environmental conditions
Module for connecting fiber optic probes (up to two simultaneously)
Main Advantages
- The ability to connect two probes, allows to work with the device in two-channel mode, monitoring simultaneously the processes taking place in two different reaction environments
- The control software allows you to set flexible routines with continuous analysis and evaluation of the data obtained in real time
- A wide range of probes designed for use in corrosive environments, at high pressures and temperatures, among others
- The ability to install a high-sensitivity MCT detector with thermoelectric cooling will allow the device to be used where there is no possibility to use liquid nitrogen for cooling
Specification
| Spectral range | 5 700 – 470 cm-1 with ZnSe beam splitter and pyroelectric detector;
7 900 – 350 cm-1 with KBr beam splitter, photodetector window, and pyroelectric detector;
8 500 – 470 cm-1 with DLaTGS detector; 6 000 – 600 cm-1 with MCT detector |
| Beam splitter | ZnSe, Diamond, KBr |
| Interferometer | Double Cat’s Eye |
| Detector | MG-32M, DLaTGS, Si, InGaAs, MCT LN2 or TE cooling, LiTaO3 |
Light source | SiC |
Spectral resolution | 0.4 cm-1 |
Signal-to-noise ratio | ≥ 50 000 (RMS in the range 2 200 – 2 000 cm-1, per 1 min, resolution 4 cm-1) |
| Integrated ATR | Optional |
| Sealed housing | YES |
| SMA connectors for connecting fiber optic probes | YES |
| Weight | 25 kg |
| Dimensions of main unit | 410 × 200 × 410 mm |
