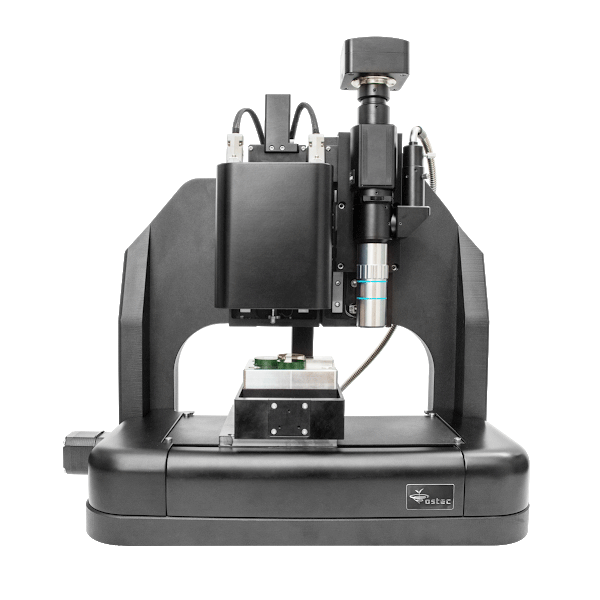

الوصف
| Series | MSO200 monochromator-spectrograph | MSO350 monochromator-spectrograph | MSO520 monochromator-spectrograph | MSO750 monochromator-spectrograph | MSDDO1000 monochromator-spectrograph |

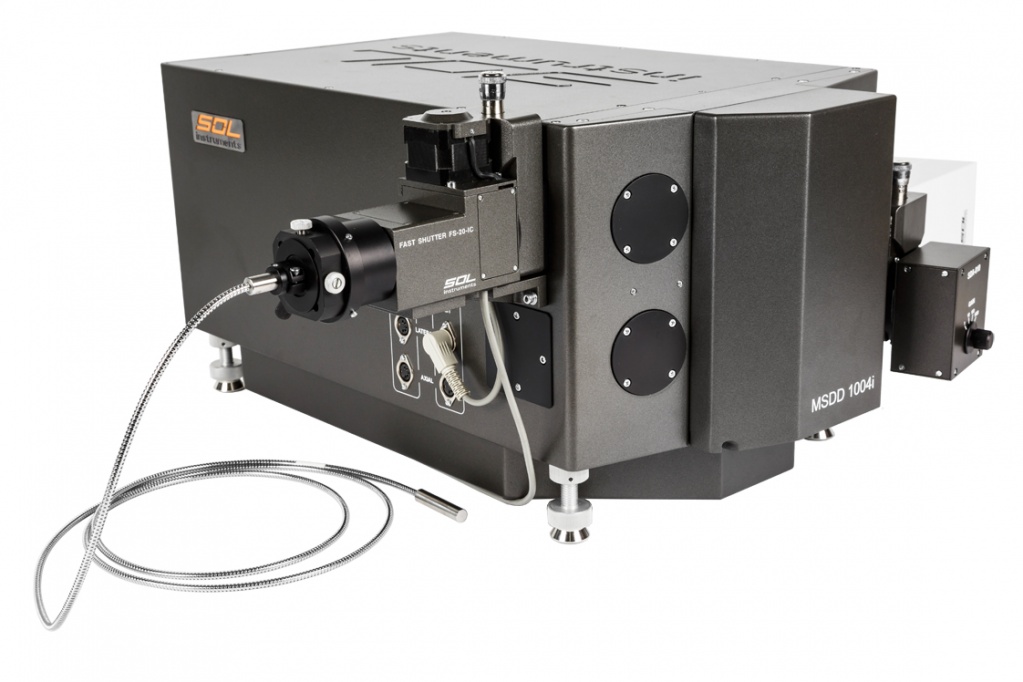

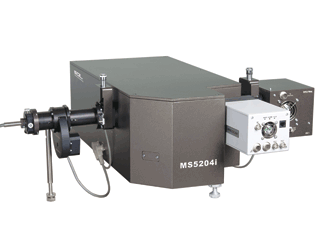

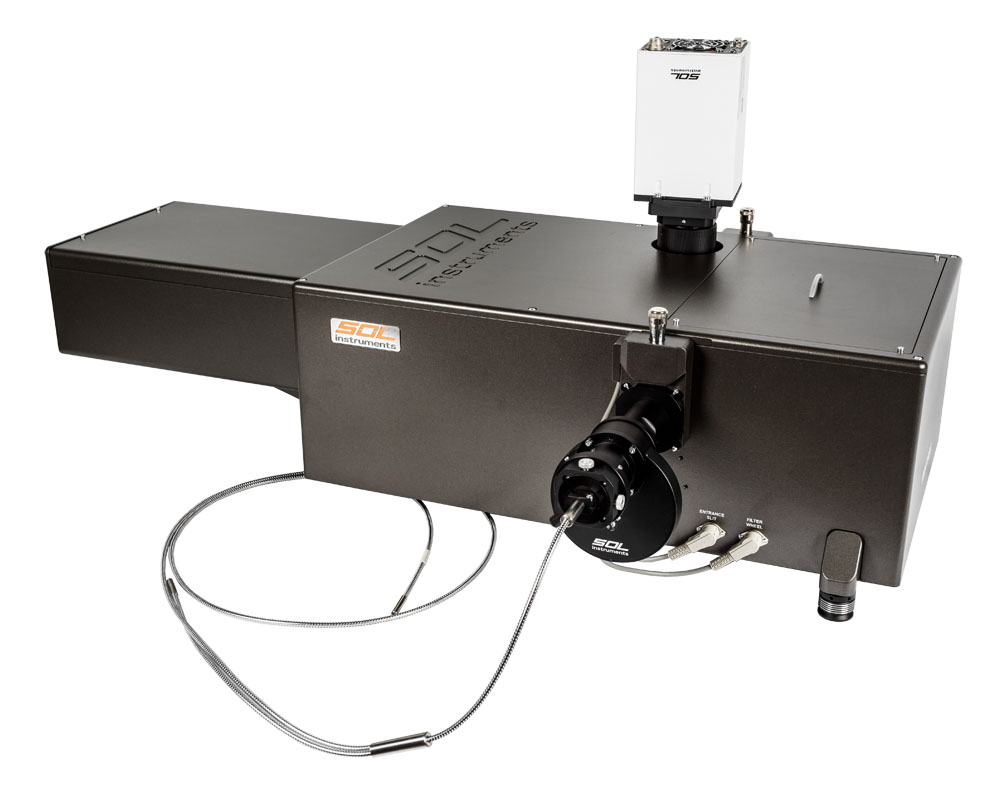

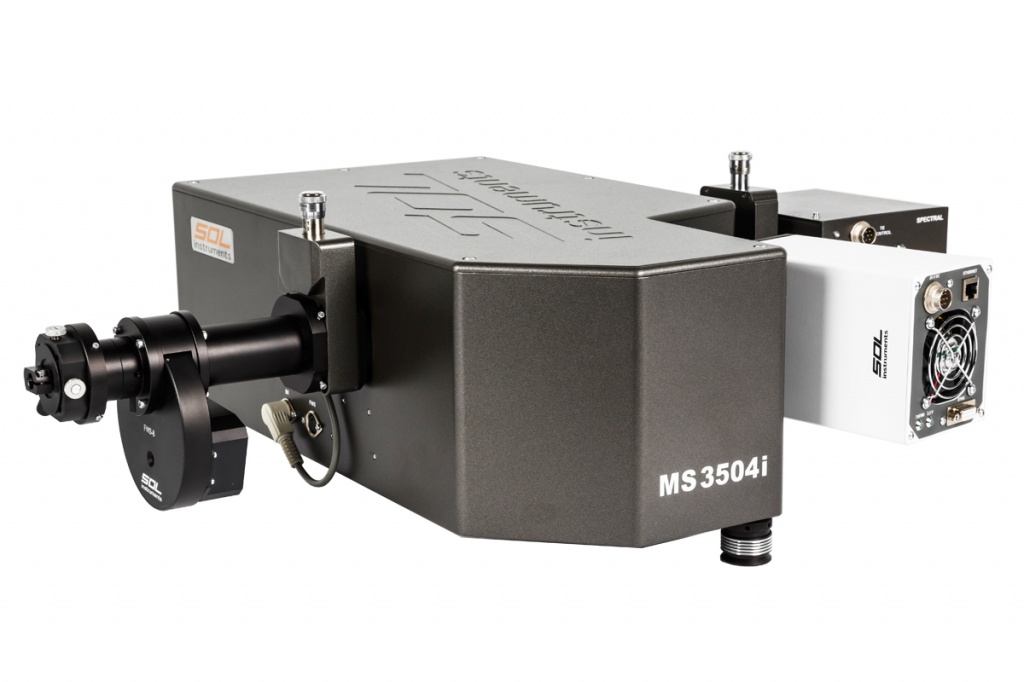

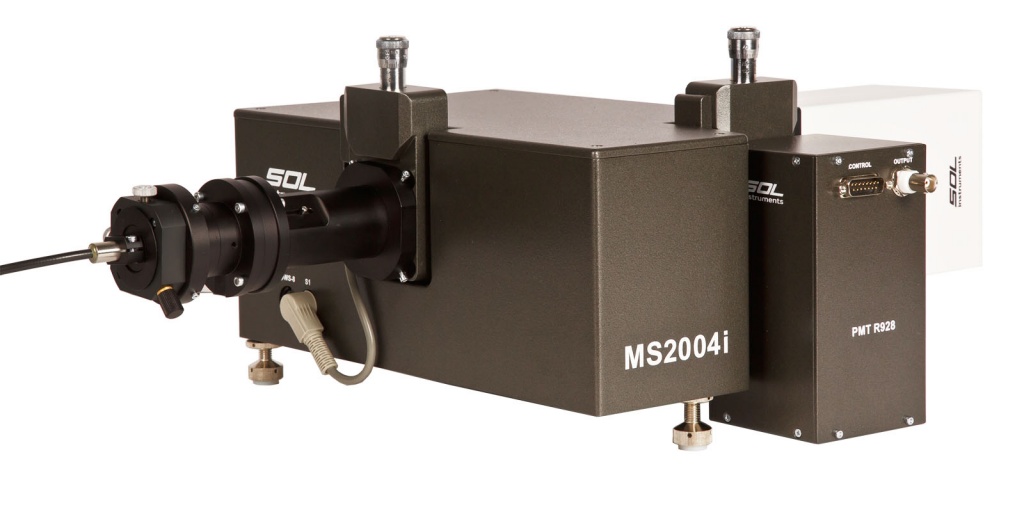

| Photo of device: |  |  |  |  |  |

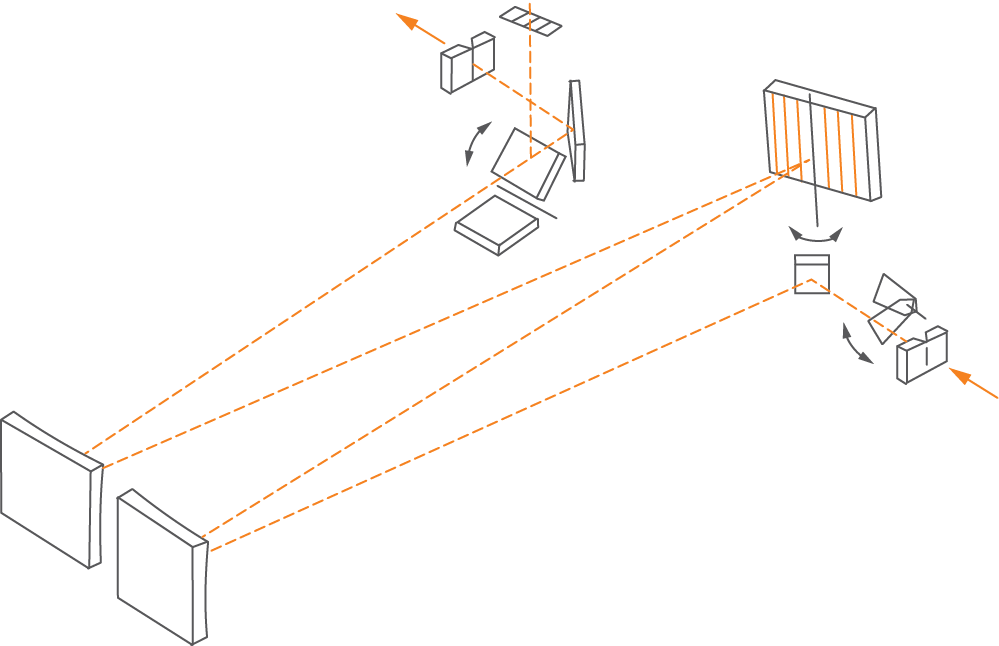

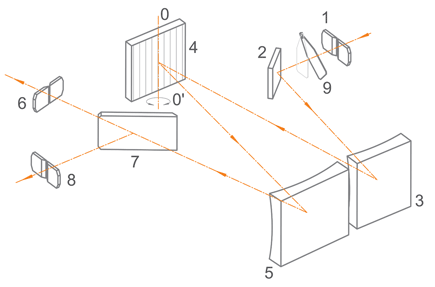

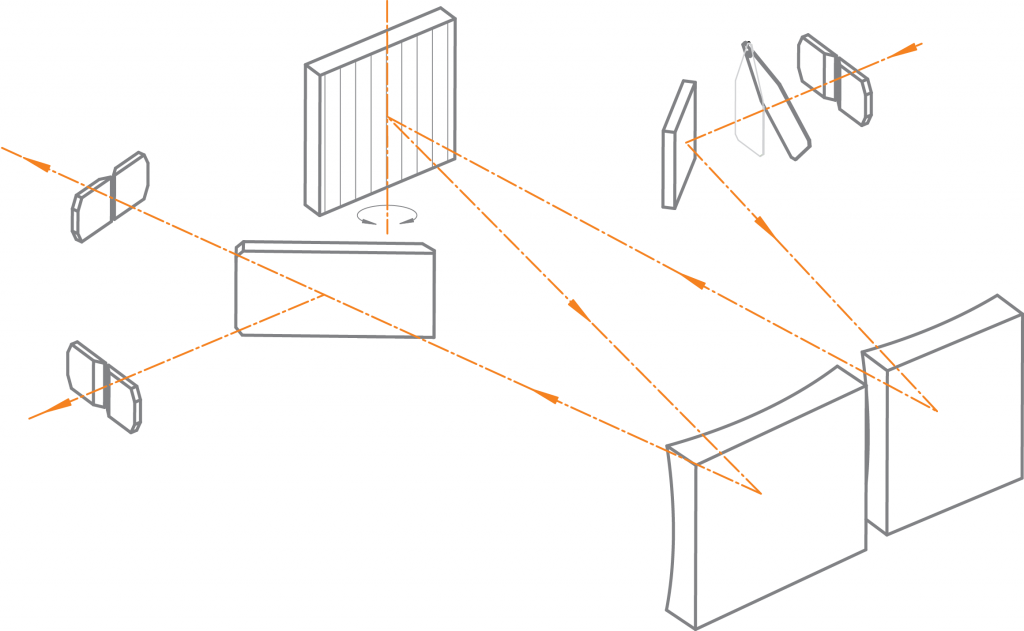

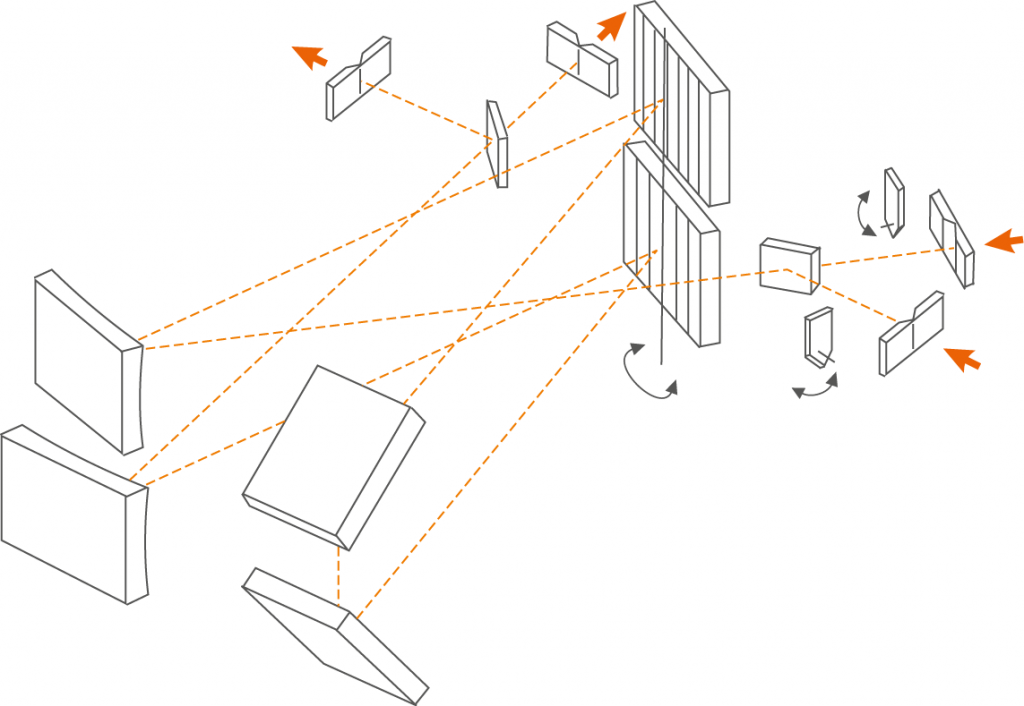

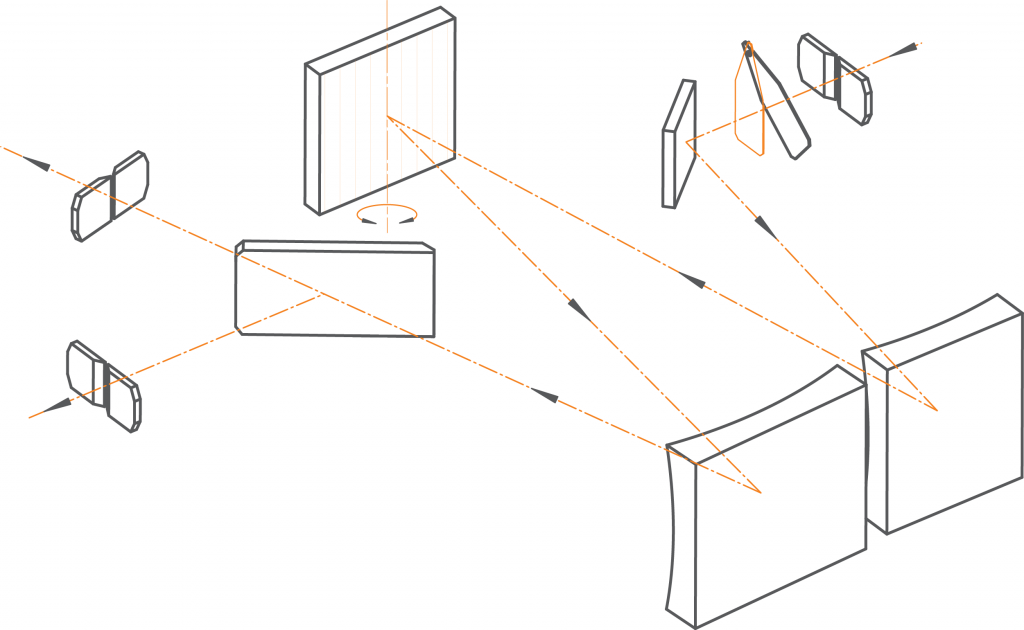

| Optical scheme: |  Cherny–Turner |  Cherny–Turner |  Cherny–Turner |  Cherny–Turner |  Cherny–Turner |
| Ports: | 1 input, 2 output | 1 input, 2 output | 1 input, 2 output | 1 input, 2 output | 2 input, 2 output |
| Wavelength range: | 185 nm – 60 µm | 185 nm – 60 µm | 185 nm – 60 µm | 185 nm – 60 µm | 185 nm – 60 µm |
| F/number (entrance): | 1/3.6 | 1/3.8 | 1/5.4 | 1/8.9 | 1/5.9 |
| Focal length (output): | 200 mm | 350 mm | 520 mm | 750 mm | 1000 mm (2 x 500) |
| Size of diffraction gratings: | 40 х 40 х 6 mm | 70 х 70 х 10 mm | 80 x 70 x 10 mm | 80 х 70 х 10 mm | 80 х 70 х 10 mm |
| Stray light (20nm from laser line 632.8nm): | 3 x 10-5 | 1 x 10-5 | 1 x 10-6 | 5.5 x 10-7 | 1 x 10-8 |
| Size of focal plane: | 26 х 10 мм | 28 х 10 мм | 28 х 10 мм | 28 х 10 мм | 28 х 10 мм |
| *Horizontal magnification: | 1.18 | 1.09 | 1.07 | 1.05 | 1.01 |
| *Vertical magnification: | 1.48 | 1.49 | 1.29 | 1.125 | 1.15 |
| *Vertical spatial resolution: | < 40 µm | < 35 µm | < 20 µm | < 15 µm | < 15 µm |
