OCOS digital spectroscopy cameras

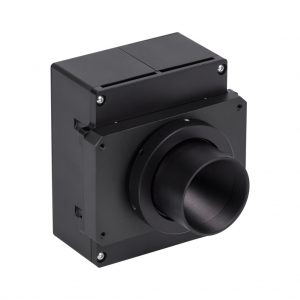

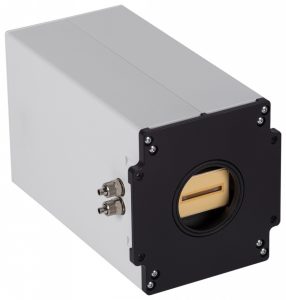

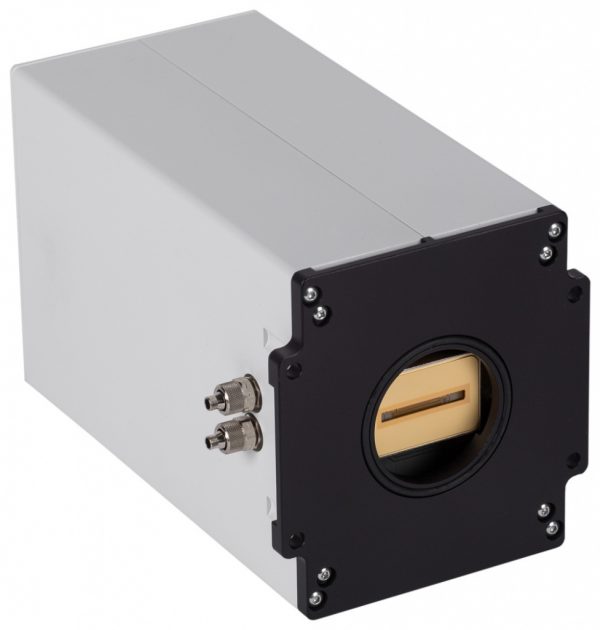

HSO 104HCCD linear area image sensor with electronic shutter | HSO 103HMulti-element array/linear detector | HSO 101H-HR & HSO 101HCCD area image sensor | HLSO 190IRInGaAs linear image sensor | |||||
 |  |  |  | |||||
 |  |  |  | |||||
SPECIFICATION
HSO 104H | HSO 103H | HSO 101H | HSO 101H-HR | HLSO 190IR | |
Spectral range | 200 – 1100 nm | 200 – 1100 nm | 200 – 1100 nm | 200 – 1100 nm | 0.9 – 2.55 μm |
| Max. readout speed | 6 MHz | up to 500 kHz | up to 1 MHz | up to 500 kHz | up to 416 kHz |
| Sensor type | CCD linear area image with electronic shutter, Back-Thinned | Back-Thinned CCD | CCD area image, Back-Thinned or Front-Illuminated | CCD area image, Back-Thinned | InGaAs linear image |
| Number of pixels | 2048 х 1 | 2048 х 64 | from 1024 х 58 to 1024 х 252 | from 2048 x 122 to 2048 x 506 | from 256 x 1 to 512 x 1 |
| Pixel size (width х height) | 14 х 1000 μm or | 14 х 14 μm | 24 х 24 μm | 12 х 12 μm | from 25 х 250 μm to 50 х 500 μm |
| Nominal value of the distance from a forward plane of the camera up to photosensitive field of the sensor | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
Exposure time | from 2 μs to 2.795 sec | from 10 μs to 7.5 h | from 10 μs to 7.5 h | from 10 μs to 7.5 h | from 1 μs to 7.5 h |
| ADC | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Built-in thermoelectric Peltier cooling, min. T, °C | – | – | -20/-65 | -40 | -20 |
| Readout noise RSM of the sensor in full Image with the maximal resolution mode | 13 counts ADC | 15 counts ADC | 6 counts (with ADC DATEL) / 12 counts (with ADC Texas Instruments) in full image mode | 6 counts (with ADC DATEL) / 12 counts (with ADC Texas Instruments) in full image mode | 15 counts ADC |
Dynamic range | not less than 5 000 | not less than 7 400 | not less than 10 000 | not less than 13 000 | not less than 5 000 |
Dimensions (L x D x H) | 100 х 48х 105 mm | 100 х 164 х 105 mm | 100 x 164 x 105 mm | 100 x 164 x 105 mm | 100 x 164 x 105 mm |
| Weight | 0.55 kg | 1.5 kg | 2.0 kg | 2.0 kg | 2.0 kg |
| Power consumption | (5 ± 0.5) V voltage | (24 ± 5) V voltage direct current (VDC) | |||
