الوصف

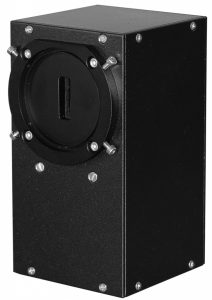

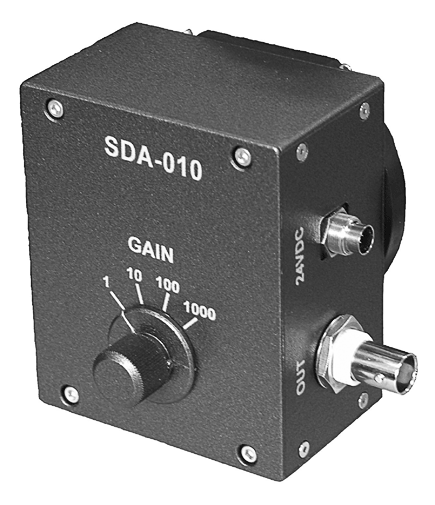

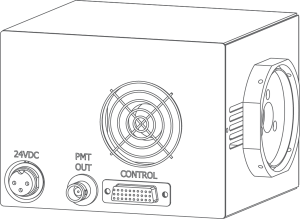

SDAO 010Silicone photodiode-based detector | PTAO 928PMT-based detector | PTMO 7844PMT-based Peltier cooled detector | |||
 |  |  | |||
 |  |  |
SPECIFICATION
SDAO 010 | PTAO 928 | PTMO 7844 | |

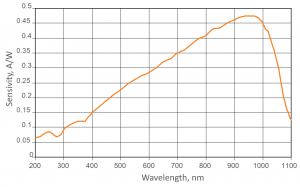

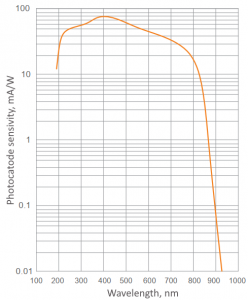

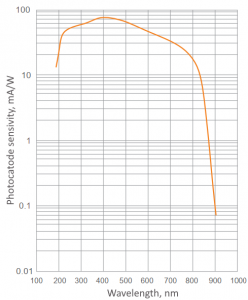

| Spectral range | 200 – 1100 nm | 185 – 900 nm | 185 – 900 nm |
| Highest sensitivity wavelength | 960 nm | 400 nm | 400 nm |
| Active area | 7 x 7 mm | 8 x 24 mm | 9 x 14 mm |
| Spectral sensitivity | 9.5 х 105 V/W | 2.2 х 1011 V/W | 2.3 х 1011 V/W |
| Output shift voltage | 50 mV | 30 mV | 1 mV |
| Max. output voltage | +5 V | +5 V | +5 V |
| Bandwidth (-3 dB) | 0 – 4.5 kHz | 0 – 50 kHz | 0 – 50 kHz |
| Sensitivity adjustment | magnification coefficients 1; 10; 100; 1000 | from 0 to max, software-controlled | from 0 to max, software-controlled |
| Dimensions | 70 х 50 х 50 mm | 90 x 80 x 150 mm | 120 x 130 x 100 mm |
| Weight | 0.3 kg | 0.8 kg | 1.2 kg |
