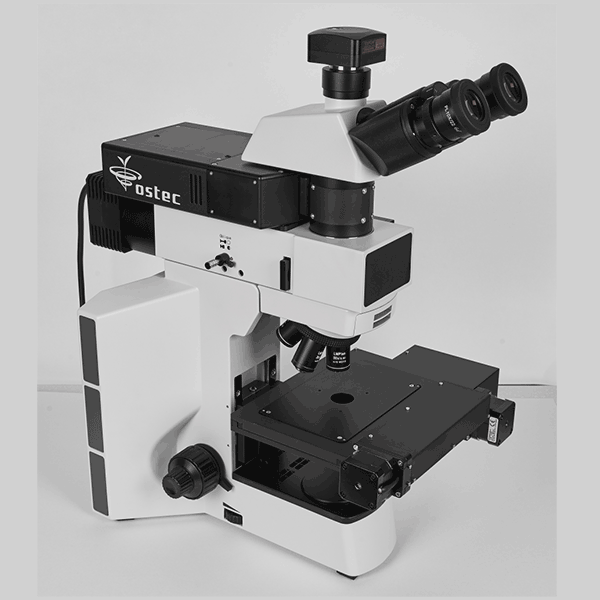

• Versatile automated confocal Raman microscope
• High throughput true confocal  design enabling submicron resolution
• Research-level optical microscope with advanced techniques
• Powerful software enables mapping of lines, areas, depth profiles, and cross-sectional slices
• Compact footprint
• Up to 2 lasers configurations
• Edge or Bragg filters
• Fully automated change of lasers, gratings with no additional system alignment
• High-resolution color video camera for a sample observation
• Research grade optical microscope
• Raman optical module
• Automated 3-position turret with mirrors for input/output radiation
• Confocal laser microscope module (“Reflection” module)
• Two-channel imaging spectrometer
• Z piezo scanner
• Manual or automated microscope stage

Spectroscopy:

• Measuring modes: laser confocal Raman microscope, Raman spectrum measurement
• Spectral range: 60 – 4 500 cm^-1
• 532 nm laser configuration
• Spectral resolution: 1.6 cm^-1/pixel, spectral stability better than 0.5 cm^-1
• 4 000 pixels for high spectral resolution

Confocal module:

• Spatial resolution: lateral resolution < 1 μm, optical axis resolution < 2 μm
• CW 532 nm laser, 50 mW (power adjustable) with lifetime > 10 000 hours
• Integrated cooled detector based on CCD.

Optical microscope and objectives:

• Research grade microscope with 10x eyepiece. Configuration of 10x, 20x, 50x, 100x objective lenses
• Color camera system which can display a stored image on PC with at least 5MP
• High precision manual positioning system with precision in XY plane
• Software package for instrument control, data collection and data processing

Optional items:

• Possibility to equip with 785 nm long-lifetime semiconductor laser, 130 mW

Advantages:

• Free of chromatic aberration in the whole spectrum range
• Modular high stability design with possible future upgrades by laser
